# Bernard Krauth Wilson 2009

### From Werner KRAUTH

E. P. Bernard, W. Krauth, D. B. Wilson *Event-chain algorithms for hard-sphere systems* Physical Review E 80 056704 (2009)

## Contents |

# Paper

**Description:** In this paper, we first presented the event-chain algorithm, a fast irreversible
Markov-chain (initially) for hard spheres and related systems.
In a single move of these rejection-free methods, an arbitrarily long
chain of particles is displaced, and long-range coherent motion can
be induced. Numerical simulations initially showed that event-chain algorithms
outperform the conventional Metropolis method. The method violates detailed balance but satisfied a global-balance conditions.

**Further information:** We used this algorithm, which is about 100 times faster than the local Metropolis algorithm, for our work on the liquid-hexatic transition in two-dimensional hard disks. See my 2011 paper, with Etienne Bernard, for the generalization of the event-chain algorithm to general, continuous, potentials.

This algorithm can be generalized to arbitrary interaction potentials. A first version was presented in a paper with Etienne Bernard, but the definitive method was worked out in collaboration with Manon Michel and Sebastian Kapfer, in 2014.

Much further research was dedicated to analyzing event-chain Monte Carlo. In later works, with Sebastian Kapfer, we showed that, in one dimensional models (which can be analyzed more fully), ECMC has much better scaling with the system size than regular Monte Carlo. This was even proven mathematically in a special case, together with Ze Lei.

Electronic version (from arXiv)

Published version in Physical Review E (subscription required)

# Illustration

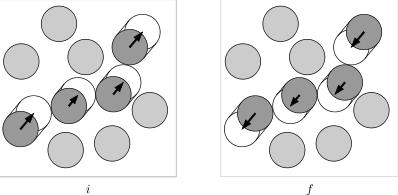

Here is the basic schema of the event-chain algorithm (the added length of the arrows equals a fixed value*l*). The event-chain algorithm is microreversible and it has no rejections. In our applications, we use a version of the algorithm where particles move

either in the +*x* or the +*y* direction. This is also done in the below Python implementation.

# Fortran90 Implementation

The original Fortran90 code that Etienne P. Bernard wrote in 2009/10 is now available on in our ParaSpheres project on github. Please check out this paper for details.

# Python Implementation

Here is a basic python implementation of the straight event-chain algorithm for four disks in the version breaking detailed balance. A randomly sampled disk always moves in the +x direction. At each step, the configuration is translated (and flipped) so that the moves starts at <math>(x,y)=(0.,0.)</math>.

###========+=========+=========+=========+=========+=========+=========+= ## PROGRAM : event_chain.py ## TYPE : Python script (python 2.7) ## PURPOSE : Event-chain simulation for 4 particles in a square box ## with periodic boundary conditions. ## COMMENT : L is a list of tuples, move is always in +x direction ## Flip_conf exchanges x and y (effective move in +y direction) ## VERSION : 10 NOV 2011 ##========+=========+=========+=========+=========+=========+=========+ from random import uniform, randint, choice, seed import math, pylab, sys, cPickle def dist(x,y): """periodic distance between two two-dimensional points x and y""" d_x= abs(x[0]-y[0])%box d_x = min(d_x,box-d_x) d_y= abs(x[1]-y[1])%box d_y = min(d_y,box-d_y) return math.sqrt(d_x**2 + d_y**2) def Flip_conf(L,rot): L_flip = [] for (a,b) in L: if rot == 1: L_flip.append((box - b,a)) else: L_flip.append((b,box - a)) return L_flip,-rot #=========================== main program starts here ========================================= box = 4.0 data = [] L = [(1.,1.),(2.,2.),(3.,3.),(3.,1.)] # initial condition rot = 1 ltilde = 0.9 for iter in xrange(1000000): if iter%10000 == 0: print iter i = randint(0,3) j = (i + randint(1,3))%4 data.append(dist(L[i],L[j])) if randint(0,1) < 1: L,rot = Flip_conf(L,rot) Zero_distance_to_go = ltilde next_particle = choice(L) while Zero_distance_to_go > 0.0: # # this iteration will stop when the Zero_distance_to_go falls to zero # L.remove(next_particle) L = [((x[0]-next_particle[0])%box,(x[1]-next_particle[1])%box) for x in L] next_position,next_particle = (float("inf"),(float("inf"),0.0)) Current_position = 0.0 for x in L: x_image = list(x) if x[0]> box/2: x_image[0] = x[0] - box if x[1]> box/2: x_image[1] = x[1] - box if abs(x_image[1]) < 1.0: x_dummy = x_image[0] - math.sqrt(1.0 - x_image[1]**2) if x_dummy > 0.0 and x_dummy < min(Zero_distance_to_go,next_position): next_position,next_particle = (x_dummy,x) distance_to_next_event = next_position - Current_position if Zero_distance_to_go < distance_to_next_event: Current_position += Zero_distance_to_go L.append((Current_position,0.0)) break else: Current_position += distance_to_next_event Zero_distance_to_go -= distance_to_next_event L.append((Current_position,0.0)) pylab.hist(data,bins=40,normed=True,alpha=0.5,cumulative=True) pylab.title("Event chain for four hard disks, l = "+str(ltilde)) pylab.xlabel("Periodic pair distance $r_{ij}$") pylab.ylabel("Integrated probabilities $\Pi(r_{ij})$") pylab.savefig('Event_chain'+str(ltilde)+'.png') pylab.show()

# Comparison of output with direct-sampling algorithm

Here is a comparison between the event-chain algorithm and a perfect-sampling approach for four disks of size 1/2 in an <math>L\times L</math> square box of length <math>L=4</math>.
